Polymer Bushing Bearings

Thomson polymer bushing bearings offer linear motion designers a reliable, yet economical, option for machines in which moment load is non-critical or contamination and temperature are concerns. These plain bearings are also useful for applications that require shafting that is incompatible with traditional Ball Bushings® (e.g. 316 stainless steel). Handling loads up to 2023 lbf, polymer bushings provide a corrosion-resistant option for low-load, low-speed applications.

When combined with roundrail shafting, pillow blocks or other assembly components, polymer bearings deliver a cost-effective linear motion solution to a number of applications, including factory automation, robotics, health and fitness, medical automation, woodworking, packaging, food and beverage, and vending.

产品介绍

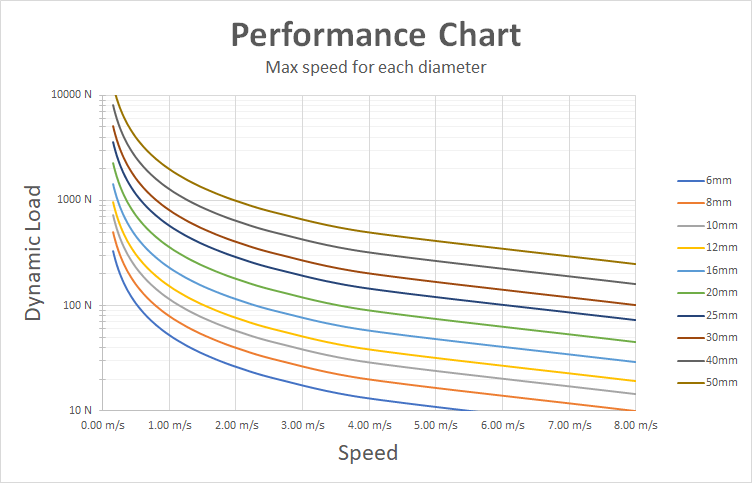

Polymer Bearings Specifications:

Max. load [N (lbf)]	9000 (2023)
Max. speed [m/s (in/sec)]	8 (315)
Bushing sizes closed type [mm]	6,8,10,12,16,20,25,30,40,50
Bushing sizes open type [mm]
Operating temperature limits [C(F)]	-50-90(-58-194)
House material	anodized aluminum
Pillow block material	aluminum

Polymer Bearings Highlights:

Available in sizes of 6 to 50 mm (closed) and 10 to 50 mm (open).
Maintenance-free operation.
Polymer liners reduce noise.
Dirt and dust resistant.
Anodized aluminum adapter.
Available with aluminum pillow blocks.
Operates in temperatures from -58˚F to 194˚F / -50˚C to 90˚C.
Available in open and closed types.

Polymer Bearings Applications:

Factory Automation
Robotics
Health and Fitness
Medical Automation
Woodworking
Packaging
Food and Beverage
Vending

Polymer Bushing Bearings IGUS CROSS REFERENCE

Polymer bushing bearings from the brand name you trust are now available locally from your distributor.

Click here to download a PDF of the cross reference table below.


Part Type	Thomson Part Number	Description	IGUS Part Number
Standard Pillow Block

	PLBM12	POLYMER-PILLOW BLOCK 12MM	RGA-01-12
	PLBM16	POLYMER-PILLOW BLOCK 16MM	RGA-01-16
	PLBM20	POLYMER-PILLOW BLOCK 20MM	RGA-01-20
	PLBM25	POLYMER-PILLOW BLOCK 25MM	RGA-01-25
	PLBM30	POLYMER-PILLOW BLOCK 30MM	RGA-01-30
	PLBM40	POLYMER-PILLOW BLOCK 40MM	RGA-01-40

	PLBM12OPN	POLYMER-PILLOW BLOCK 12MM OPEN	OGA-01-12
	PLBM16OPN	POLYMER-PILLOW BLOCK 16MM OPEN	OGA-01-16
	PLBM20OPN	POLYMER-PILLOW BLOCK 20MM OPEN	OGA-01-20
	PLBM25OPN	POLYMER-PILLOW BLOCK 25MM OPEN	OGA-01-25
	PLBM30OPN	POLYMER-PILLOW BLOCK 30MM OPEN	OGA-01-30
	PLBM40OPN	POLYMER-PILLOW BLOCK 40MM OPEN	OGA-01-40

Twin Pillow Block

	PLTBM12	TWN POLYMER-PILLOW BLOCK 12MM	RTA-01-12
	PLTBM16	TWN POLYMER-PILLOW BLOCK 16MM	RTA-01-16
	PLTBM20	TWN POLYMER-PILLOW BLOCK 20MM	RTA-01-20
	PLTBM25	TWN POLYMER-PILLOW BLOCK 25MM	RTA-01-25
	PLTBM30	TWN POLYMER-PILLOW BLOCK 30MM	RTA-01-30
	PLTBM40	TWN POLYMER-PILLOW BLOCK 40MM	RTA-01-40

	PLTBM12OPN	POLYMER-PILLOW BLOCK 12MM OPEN	OTA-01-12
	PLTBM16OPN	POLYMER-PILLOW BLOCK 16MM OPEN	OTA-01-16
	PLTBM20OPN	POLYMER-PILLOW BLOCK 20MM OPEN	OTA-01-20
	PLTBM25OPN	POLYMER-PILLOW BLOCK 25MM OPEN	OTA-01-25
	PLTBM30OPN	POLYMER-PILLOW BLOCK 30MM OPEN	OTA-01-30
	PLTBM40OPN	POLYMER-PILLOW BLOCK 40MM OPEN	OTA-01-40

Polymer Bushing	PLM06	POLYMER BUSHING 6MM	RJZM-01-06
	PLM08	POLYMER BUSHING 8MM	RJZM-01-08
	PLM10	POLYMER BUSHING 10MM	RJUM-01-10
	PLM12	POLYMER BUSHING 12MM	RJUM-01-12
	PLM16	POLYMER BUSHING 16MM	RJUM-01-16
	PLM20	POLYMER BUSHING 20MM	RJUM-01-20
	PLM25	POLYMER BUSHING 25MM	RJUM-01-25
	PLM30	POLYMER BUSHING 30MM	RJUM-01-30
	PLM40	POLYMER BUSHING 40MM	RJUM-01-40
	PLM50	POLYMER BUSHING 50MM	RJUM-01-50
	PLM10OPN	POLYMER BUSHING 10MM OPEN	OJUM-01-10
	PLM12OPN	POLYMER BUSHING 12MM OPEN	OJUM-01-12
	PLM16OPN	POLYMER BUSHING 16MM OPEN	OJUM-01-16
	PLM20OPN	POLYMER BUSHING 20MM OPEN	OJUM-01-20
	PLM25OPN	POLYMER BUSHING 25MM OPEN	OJUM-01-25
	PLM30OPN	POLYMER BUSHING 30MM OPEN	OJUM-01-30
	PLM40OPN	POLYMER BUSHING 40MM OPEN	OJUM-01-40

Polymer Bushing Bearings	1050 KB	Email
Polymer Bushing Bearings	1051 KB	Email

产品选型 >

Choose Your CAD Model:

Bushings (PL Series)

Polymer Bushings (PL Series)

Pillow Blocks

Polymer Pillow Blocks

Twin Pillow Blocks

Polymer Twin Pillow Blocks
