8107-448-016 - 已替代产品

产品 8107-448-016 现已被替代。我们建议更换为 SBN7202.

Suggested replacement has similar form/fit/function, but not a drop-in replacement or interchangeable. Review specifications of replacement item to ensure it will meet application requirements.

下载完整产品目录

打印技术规格

8107-448-016

Ball Nut

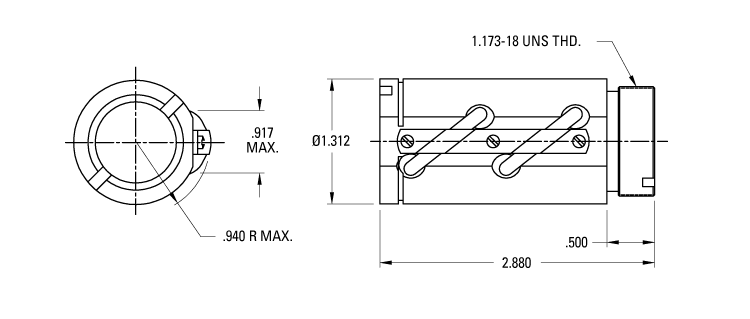

Ball Nut, 0.750 in X 0.200 in, Thread Direction: Right Hand, Round, 1.173-18 UNS, With Safety Feature, Non-Preloaded, 捡拾齿, 1900 lbf

仅螺母
经过质量检测，确保可靠的性能
具有可靠的精度和可重复性，且价格实惠

尺寸

Dimension	Value
Unit Of Measure	All Length values in: inches

Dimension	Value
Unit Of Measure	All Length values in: inches

规格

Specification	Value
直径	0.750 in
导程	0.200 in
螺母材料	Alloy Steel
螺母款式	Precision
梯形丝杠零件编号	190-9124
启动次数	1
总重	0.75 lbs

性能

Performance	Value
负载，动态	8,452 N (1,900 lbf)
负载，静态	83,627 N (18,800 lbf)
