8105-448-013 - 已替代产品

产品 8105-448-013 现已被替代。我们建议更换为 SBN10094.

Suggested replacement has similar form/fit/function, but not a drop-in replacement or interchangeable. Review specifications of replacement item to ensure it will meet application requirements.

下载完整产品目录

打印技术规格

8105-448-013

Ball Nut

Ball Nut, 0.500 in X 0.200 in, Thread Direction: Right Hand, Round, With Safety Feature, Non-Preloaded, 捡拾齿, 1200 lbf

仅螺母
经过质量检测，确保可靠的性能
具有可靠的精度和可重复性，且价格实惠

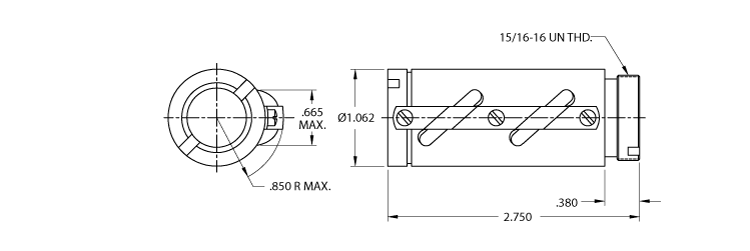

尺寸

Dimension	Value
Unit Of Measure	All Length values in: inches

Dimension	Value
Unit Of Measure	All Length values in: inches

规格

Specification	Value
直径	0.500 in
导程	0.200 in
螺母材料	Alloy Steel
螺母款式	Precision
梯形丝杠零件编号	190-9097
启动次数	1
总重	0.55 lbs

性能

Performance	Value
负载，动态	5,338 N (1,200 lbf)
负载，静态	41,947 N (9,430 lbf)
